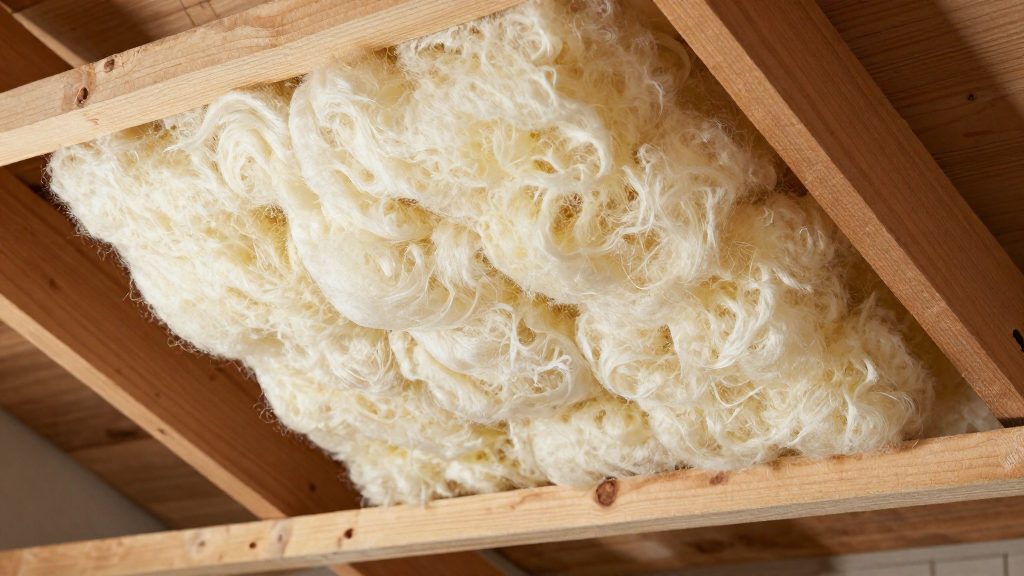

What Is Attic R-Value and How It Works
Attic insulation performance is measured by R-value, a metric quantifying thermal resistance to conductive heat flow in hr·ft²·°F/Btu. A higher R-value indicates greater insulating power, effectively slowing heat transfer. Heat naturally flows from warmer to cooler areas: escaping into the attic in winter and entering the home in summer. Insulation acts as a constant barrier to this conductive flow, regardless of direction.
Recommended Attic R-Values by US Climate Zone
The U.S. Department of Energy and ENERGY STAR divide the country into eight climate zones to guide insulation standards. These zones determine the minimum R-value required for attic ceilings, ensuring thermal efficiency regardless of local weather. The specific target depends on whether you are building new, upgrading, or insulating a bare attic.
For new residential construction, the International Energy Conservation Code (IECC 2021) sets strict baselines. Zone 1 requires a minimum of R-30, Zone 2 requires R-49, and Zones 3 through 8 require R-60. These code minimums represent the legal floor for new builds, though many homeowners choose higher values for improved comfort.
When upgrading existing attics, recommendations shift based on current conditions. If your attic has no insulation, ENERGY STAR advises reaching R-30 in Zone 1, R-49 in Zones 2 and 3, and R-60 in Zones 4 through 8. If you already have a thin layer (typically 3 to 4 inches), add material to reach the same total targets.
| Climate Zone | Uninsulated Attic Target | Existing Insulation (3-4 in) Addition | New Construction Minimum |
|---|---|---|---|
| Zone 1 | R-30 | Add R-25 | R-30 |
| Zones 2-3 | R-49 | Add R-38 | R-49 |
| Zones 4-8 | R-60 | Add R-49 | R-60 |
Insulation R-Values and Depth Requirements by Material
Selecting the right attic insulation depends on understanding the thermal resistance each material provides per unit of thickness. Higher values indicate greater insulating power.
Below is a comparison of common attic insulation materials and their average thermal resistance per inch.
| Material Type | Average R-Value per Inch |
|---|---|
| Loose-fill Cellulose | R-3.2 to R-3.8 |
| Fiberglass Batts | R-3.1 to R-3.4 |
| Loose-fill Fiberglass | R-2.2 to R-2.7 |
| Mineral Wool Batts | R-3.3 to R-4.0 |
| Closed-cell Spray Foam | R-6.0 to R-7.0 |
| Open-cell Spray Foam | R-3.5 to R-3.8 |
Batts, such as fiberglass and mineral wool, maintain thickness more consistently but require careful fitting to avoid gaps.
Always verify the specific product data sheet for the exact R-value, as manufacturing variations can affect performance. This baseline data helps you estimate the necessary depth before calculating total project requirements.

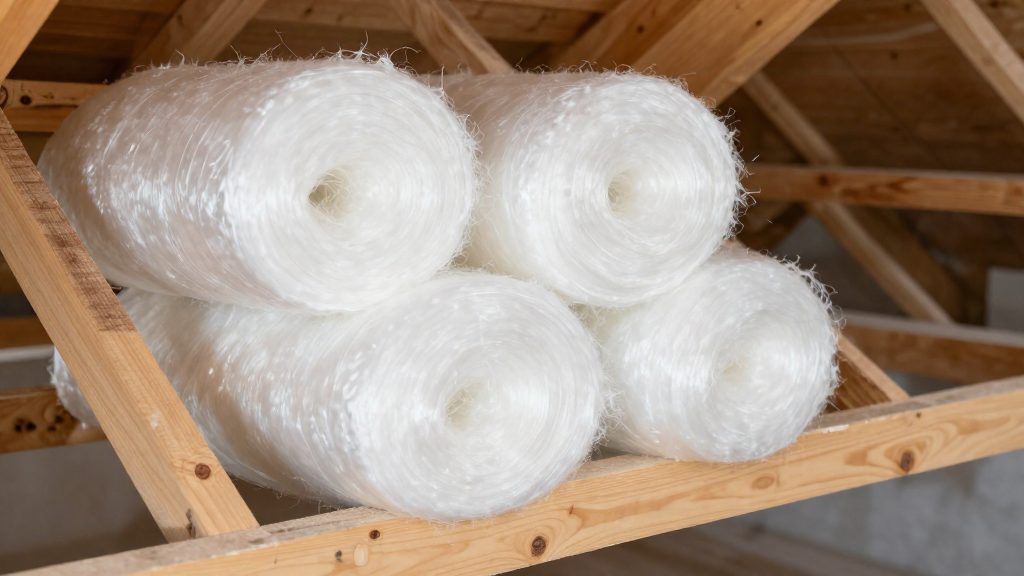

How to Calculate Required Attic Insulation Depth and Coverage
To determine how much insulation you need, start by identifying your target R-value based on your climate zone and existing conditions. Convert this target into physical depth using the material’s thermal resistance rate. The core formula is: divide your target R-value by the R-value per inch of your chosen material. For example, if using loose-fill cellulose (roughly R-3.7 per inch), divide your target R-value by 3.7 to find the required settled depth in inches.
Next, calculate the total area coverage. Measure the length and width of the attic floor in feet and multiply them to get the total square footage. This figure tells you how much material to purchase.
Finally, assess your existing insulation. If current insulation sits level with or below the ceiling joists, it likely falls below modern recommendations. Measure the current depth and determine its approximate R-value. This approach allows you to add only the necessary amount of new material rather than replacing the entire layer.
Worked Examples: Calculating R-Value and Material Quantities
To determine necessary insulation depth, apply the formula: Target R-value ÷ R-value per inch = Total Depth in inches. This ensures you purchase the correct volume for your specific climate zone and product.
Consider a home in Climate Zone 4 using loose-fill cellulose. The recommended target for an uninsulated attic is R-60. Since standard loose-fill cellulose provides approximately R-3.7 per inch, the calculation is 60 ÷ 3.7, resulting in a required settled depth of roughly 16.2 inches. For a home in Climate Zone 2 using fiberglass batts, the target is R-49. With fiberglass batts delivering about R-3.2 per inch, the required depth is 49 ÷ 3.2, which equals approximately 15.3 inches.
Once you have the depth, estimate the total material quantity. Calculate the attic area by multiplying length by width in feet. Then, multiply the area by the required depth in feet to find the cubic volume.
| Material Type | R-Value per Inch | Target R-60 Depth (in) | Target R-49 Depth (in) |
|---|---|---|---|
| Loose-fill Cellulose | ~3.7 | 16.2 | 13.2 |
| Fiberglass Batts | ~3.2 | 18.8 | 15.3 |
| Loose-fill Fiberglass | ~2.5 | 24.0 | 19.6 |
Key Rules for Air Sealing and Insulation Settling
Before installing new insulation, address air sealing to prevent thermal bypass. Building codes and energy guidelines require sealing all attic penetrations before adding insulation. Key locations include plumbing vents, electrical boxes, chimney chases, and access hatches. Failure to seal these gaps allows convective heat loss, significantly reducing effective insulation performance. Use appropriate sealants or gaskets to close these openings, ensuring a continuous air barrier.
Finally, understand the role of a vapor barrier. In cold climates, moisture from indoor air can migrate into the attic space. If this moisture condenses within the insulation or on the ceiling deck, it can degrade the material and promote mold growth. Installation rules for vapor barriers depend on your specific climate zone and insulation type. Generally, a vapor barrier is installed on the warm side of the insulation assembly to prevent moisture from entering the cold attic space. Always verify local building codes to determine if a vapor barrier is mandatory for your region and construction type.
